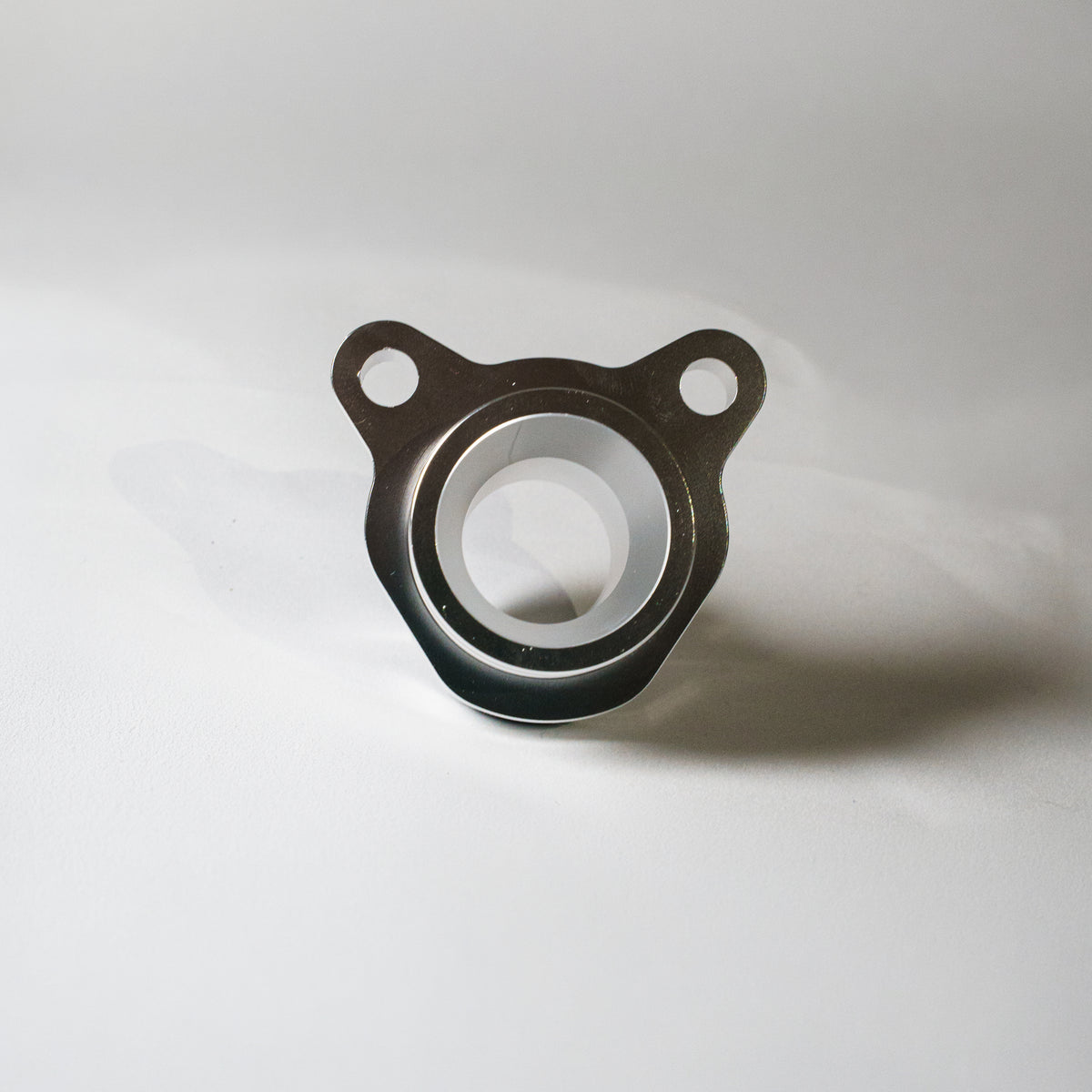

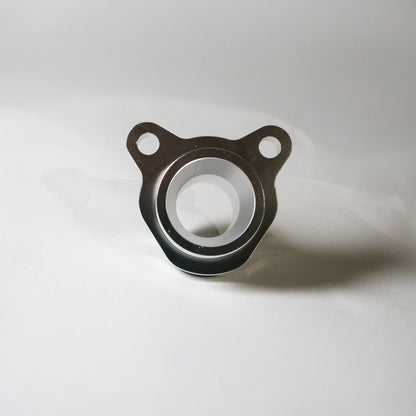

Aluminium Coolant Hose Flange (Mickey mouse)

The plastic coolant hose flange on BMW's 3.0L six-cylinder engines (commonly called the "Mickey Mouse" flange for its shape) is a well documented failure point. It sits at the front of the cylinder head, and is commonly damaged whilst conducting other repairs because of how brittle these OEM parts get after many heat cycles.

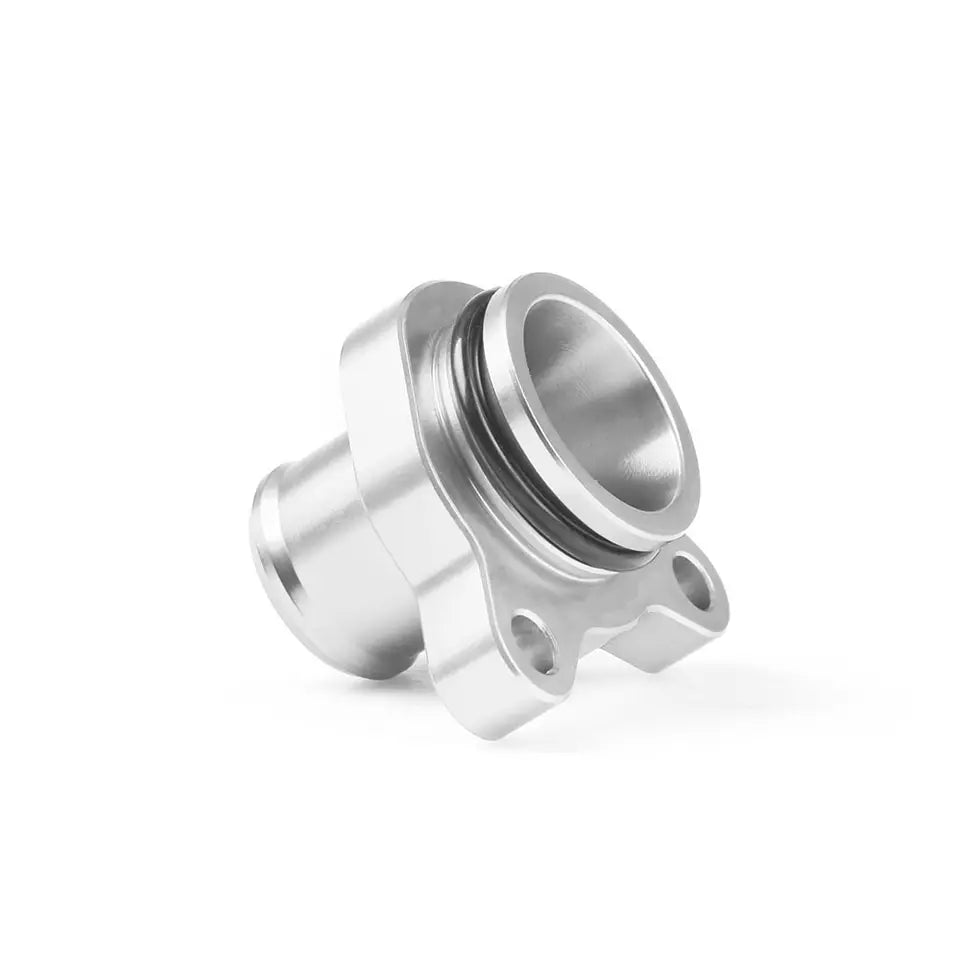

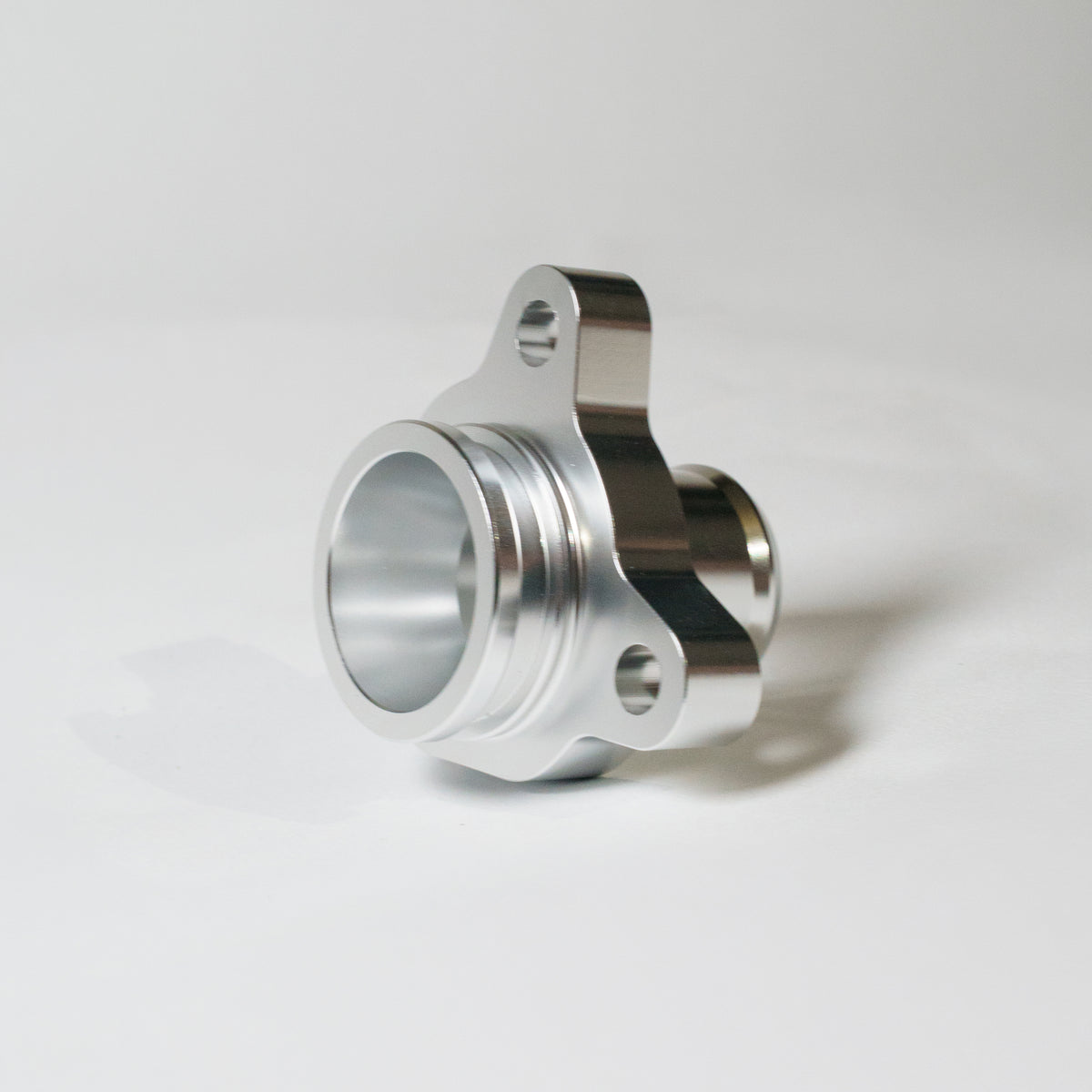

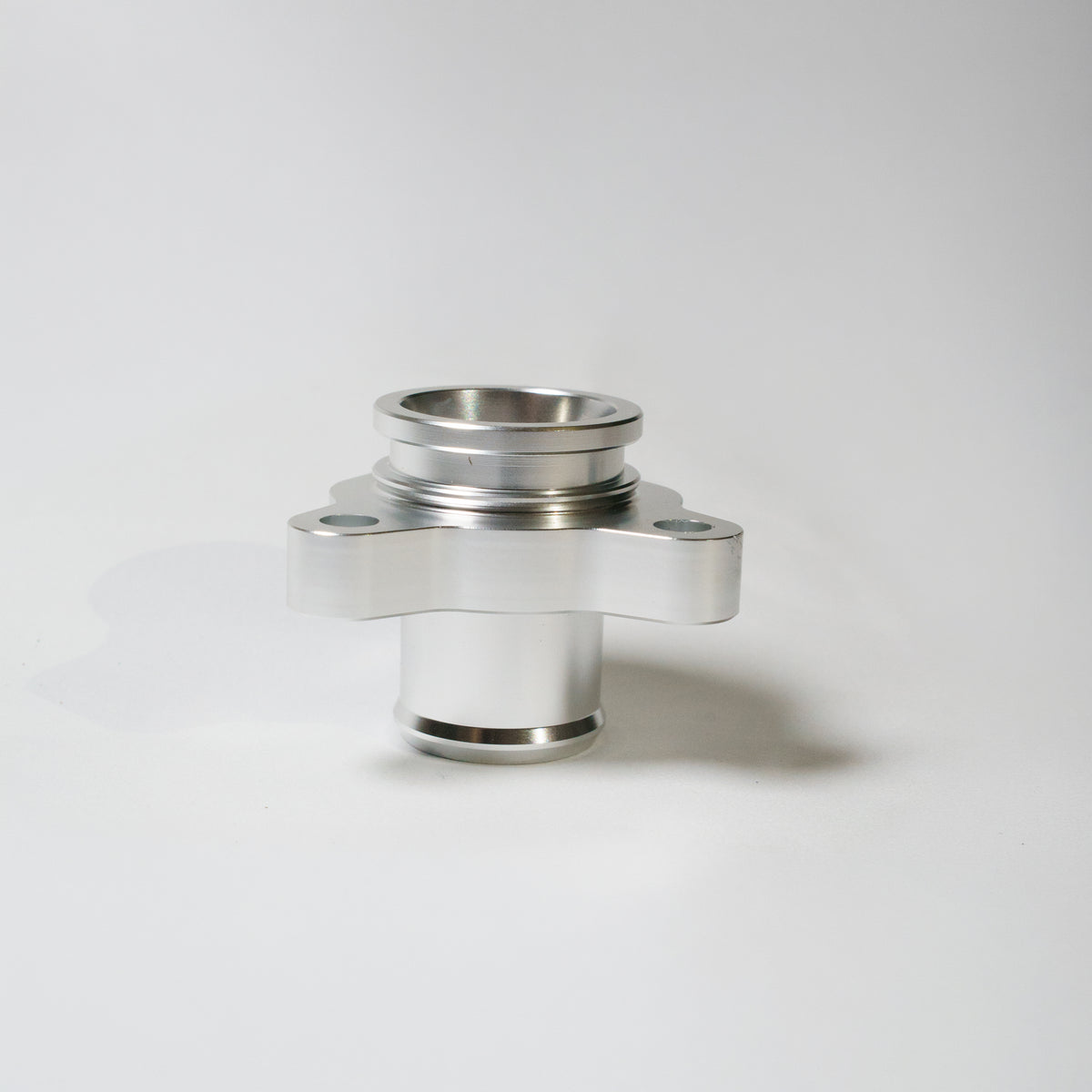

This is an aluminium replacement for that fitting. Because it isn't plastic, it doesn't get brittle with age, and it survives being disturbed during other repairs.

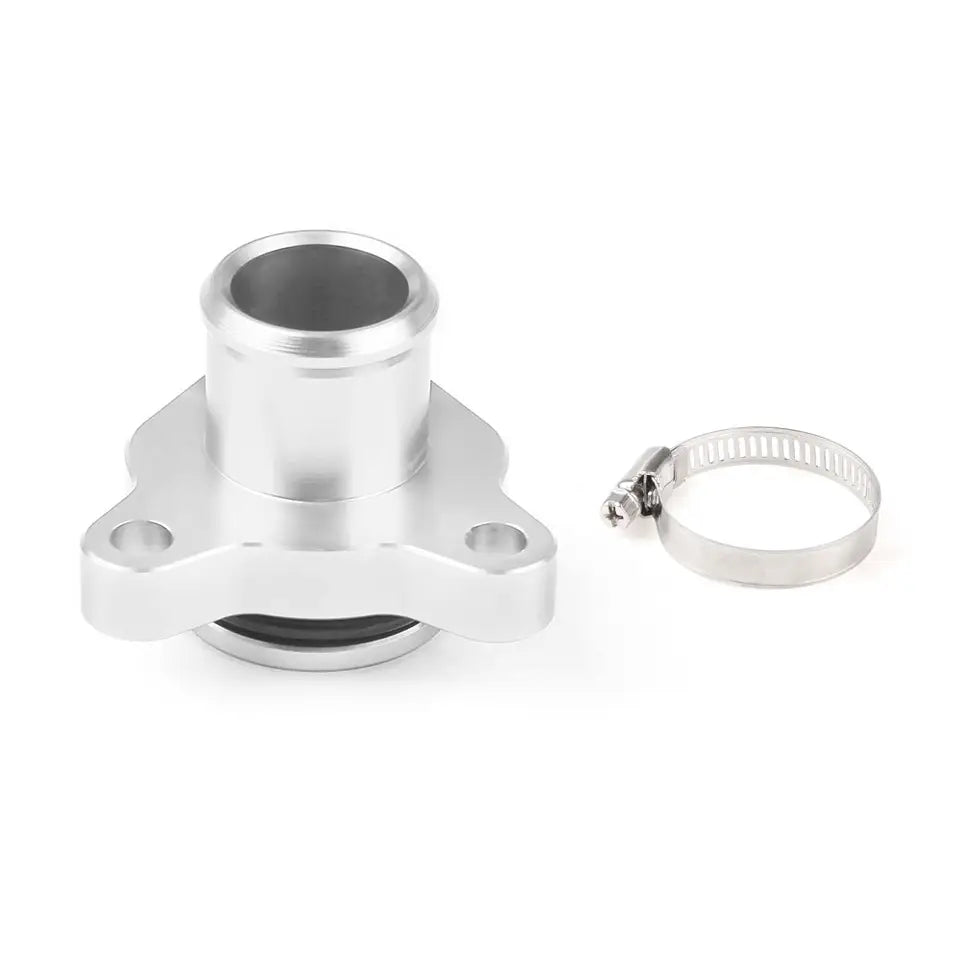

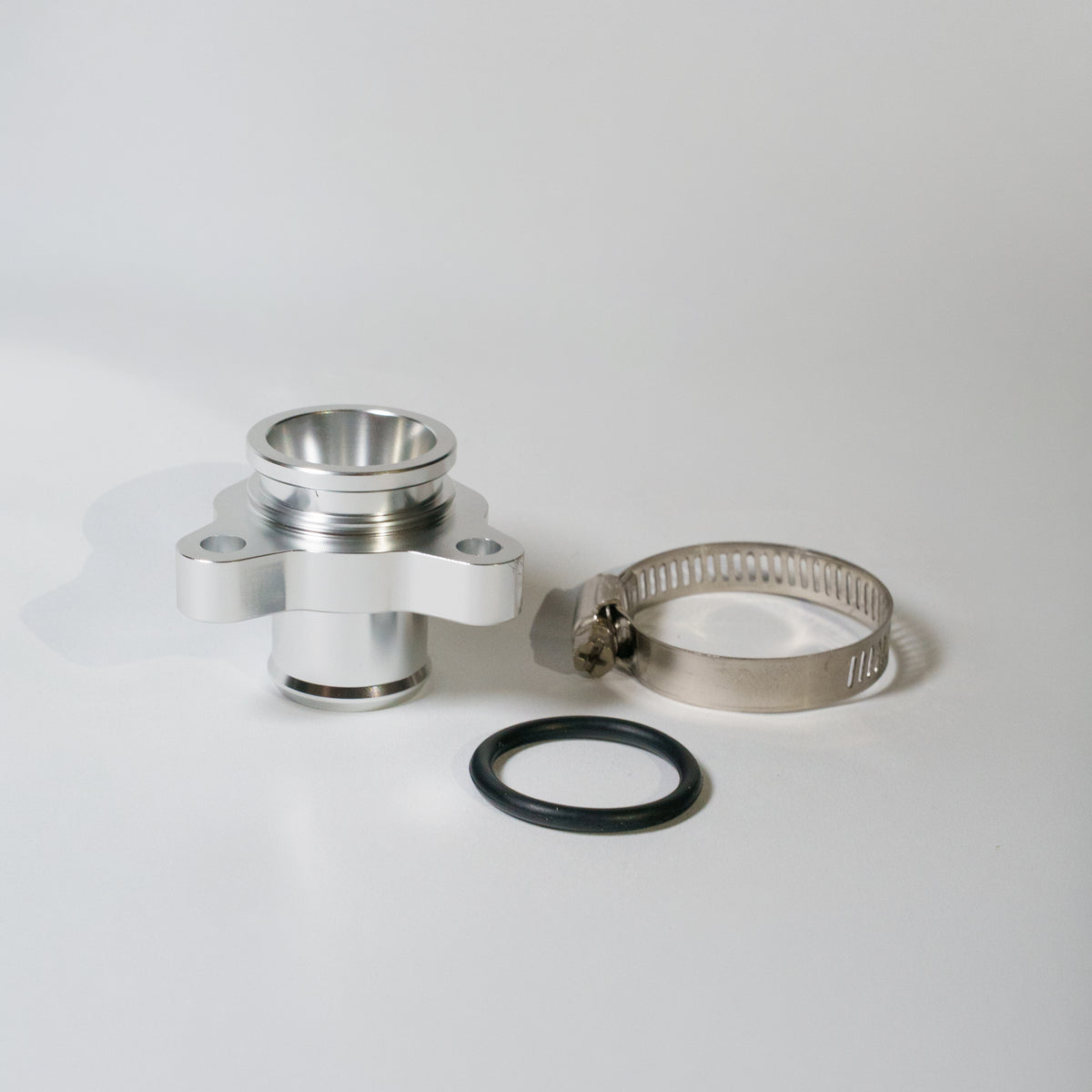

Package Contents

• 1x aluminum flange
• 1x o-ring to fit N54
• 1x hose clamp

Features

• Aluminium construction in place of the original plastic fitting
• Direct fit into the factory location - no drilling, modification or adapters
• Replaces OE part numbers 11537541992 and 11537544638
• Common preventative maintenance item on any 3.0L six and should be replaced at roughly ~100,000km
• Best to fit while you're already in the area - thermostat, water pump, valve cover gasket or turbo work

Full compatibility list

N54 (3.0L twin turbo)

• E82 / E88 135i (2008-2010)
• E82 1M Coupe (2011)
• E90 / E91 / E92 / E93 335i, 335xi, 335is (2007-2013)
• E60 / E61 535i, 535xi (2008-2010)
• E71 X6 xDrive35i (2008-2010)
• E89 Z4 sDrive35i / sDrive35is (2009-2016)
• F01 / F02 740i / 740Li (2009-2012)
• F07 535i GT (2010-2011)

N51 / N52 (3.0L naturally aspirated)

• E82 / E88 128i (2008-2013)
• E90 / E91 / E92 / E93 325i, 325xi, 328i, 328xi, 330i, 330xi (2006-2013)
• E60 / E61 525i, 525xi, 528i, 528xi, 530i, 530xi (2006-2010)
• E83 X3 3.0si / xDrive30i (2007-2010)
• E70 X5 xDrive30i (2007-2010)
• E85 / E86 Z4 3.0si (2006-2008)
• E89 Z4 sDrive30i (2009-2016)

N53 (3.0L naturally aspirated, European market)

• E90 / E91 / E92 / E93 325i, 330i (2007-2011)
• E60 / E61 525i, 530i (2007-2010)

Important: the flange body is common across these engines, but the sealing O-ring differs - N54 uses a thicker O-ring than N51/N52/N53. Check which O-ring is supplied with this part before ordering, or send us your VIN and we'll confirm.
